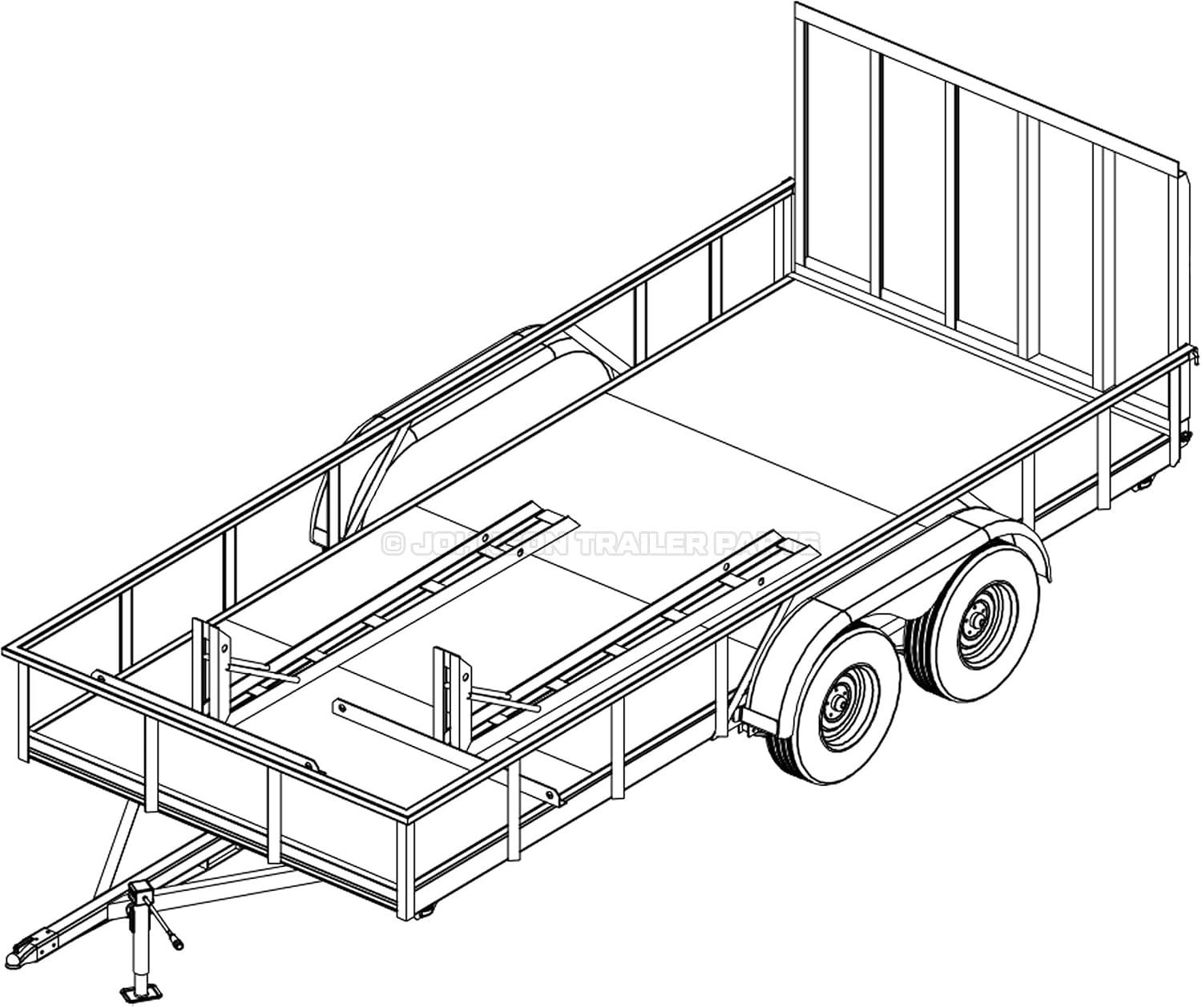

Johnson Trailer Parts 6 ft 10 in x 16 ft Utility Trailer Plans, 7k to 10K Capacity, DIY Blueprints, Step-by-Step Instructions, MU716DS70

Johnson Trailer Parts 6' 10" x 16' Utility Trailer Plans, MU716DS70 Trailer BlueprintsBuild your own heavy-duty 6' 10" x 16' utility trailer with these detailed MU716DS70 blueprints. Designed for a 7,000 lb or 10,400 lb capacity tandem axle trailer, this plan set includes step-by-step instructions, steel cut list, material guidance, and fabrication details for a strong utility trailer design. Plans engineered by Synthesis Engineering Services, Inc. for a precise, heavy-duty trailer design.Specifications:Model: MU716DS70Bed Size: 6' 10" x 16'Max Capacity: 7,000 lb or 10,400 lbTrailer Type: Utility TrailerAxle Configuration: Tandem Axle with Leaf SpringsFrame: Welded steel constructionThis plan package includes 28 pages of drawings plus 15 pages of instructions. Pages ship flat for easier use on a standard workbench and are easier to handle in the shop than rolled plans while still providing large, detailed drawings.Designed with multiple build options, these plans can be adapted to suit a range of trailer uses. Features include a 14' bed option, fold-down tailgate or ramp choices, removable hidden ramp options, flatbed or side configurations, and multiple tie-down options. Johnson Trailer Parts also offers a matching trailer parts kit for this plan. Ideal for Do-It-Yourselfers, Builders, and Shop Classes.Note: These blueprints show how to build the trailer and install major components. They do not include physical trailer parts or instructions for manufacturing axles or other trailer hardware.Legal Notice: 2026 Johnson Trailer Parts. All rights reserved. These plans are licensed for personal use only. Copying, scanning, digital sharing, distribution, or reselling of this publication is strictly prohibited under U.S. copyright law.

• Utility Trailer Plans: Detailed engineered blueprints with step-by-step instructions for building a 6 ft 10 in x 16 ft utility trailer from the ground up. Includes steel material lists, cut dimensions, and fabrication guidance for the trailer frame and deck
• 7K or 10K Capacity Design: Engineered for a heavy-duty tandem axle utility trailer with a 7,000 lb or 10,400 lb maximum capacity. Ideal for hauling atvs, tools, equipment, landscaping materials, supplies, and general-purpose cargo
• Detailed Drawings Shipped Flat: Includes 28 pages of drawings plus 15 pages of instructions. Ships flat for easier use on a standard workbench without the frustration of rolled-up plans
• Component Installation & Mounting: Includes layout and mounting guidance for standard trailer axles and related trailer components. These plans show how to build the trailer and install major components, but do not include instructions for manufacturing axles or other trailer parts
• Designed with multiple build options, these plans can be adapted to suit a range of trailer uses. Features include a 14' bed option, fold-down tailgate or ramp choices, removable hidden ramp options, flatbed or side configurations, and multiple tie-down options
