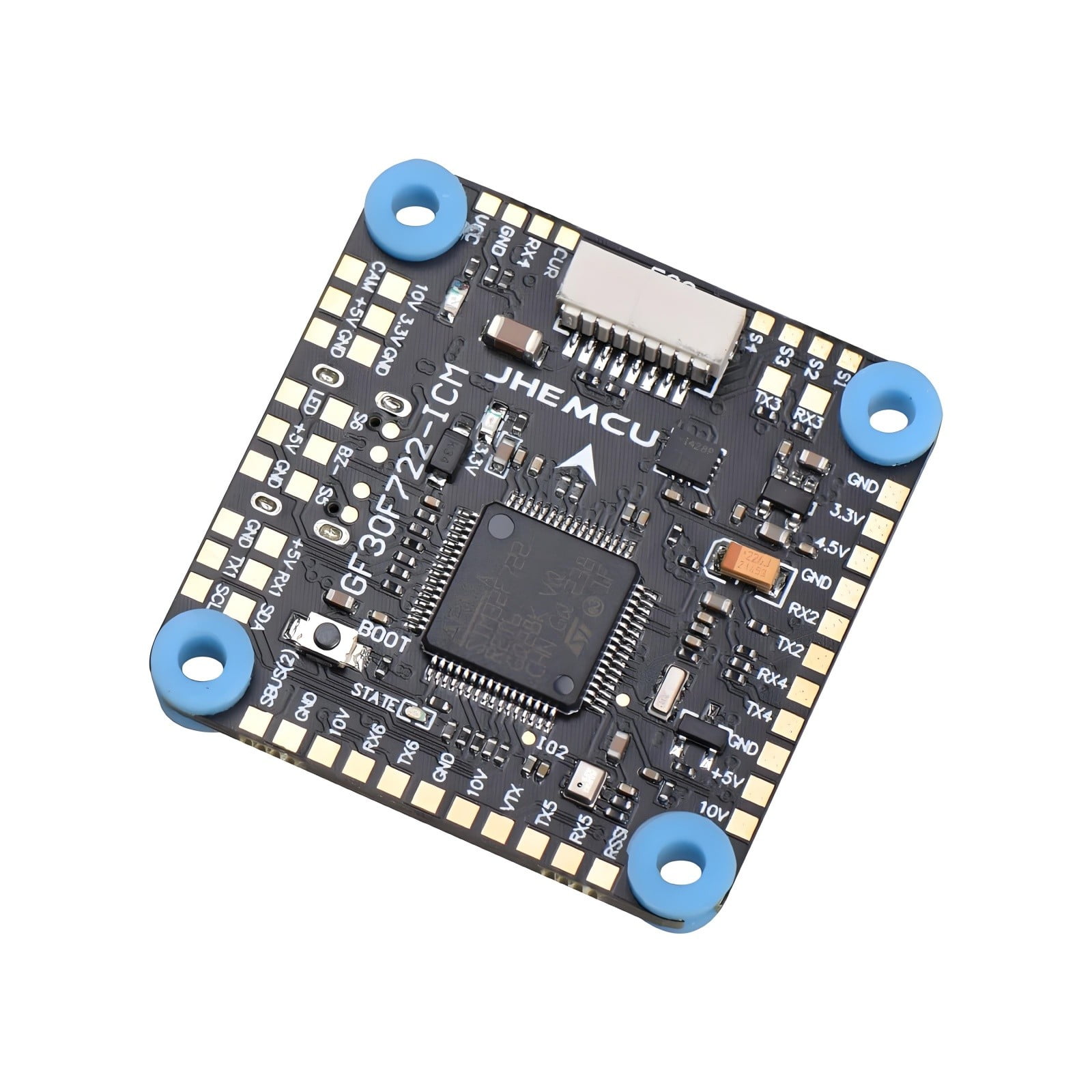

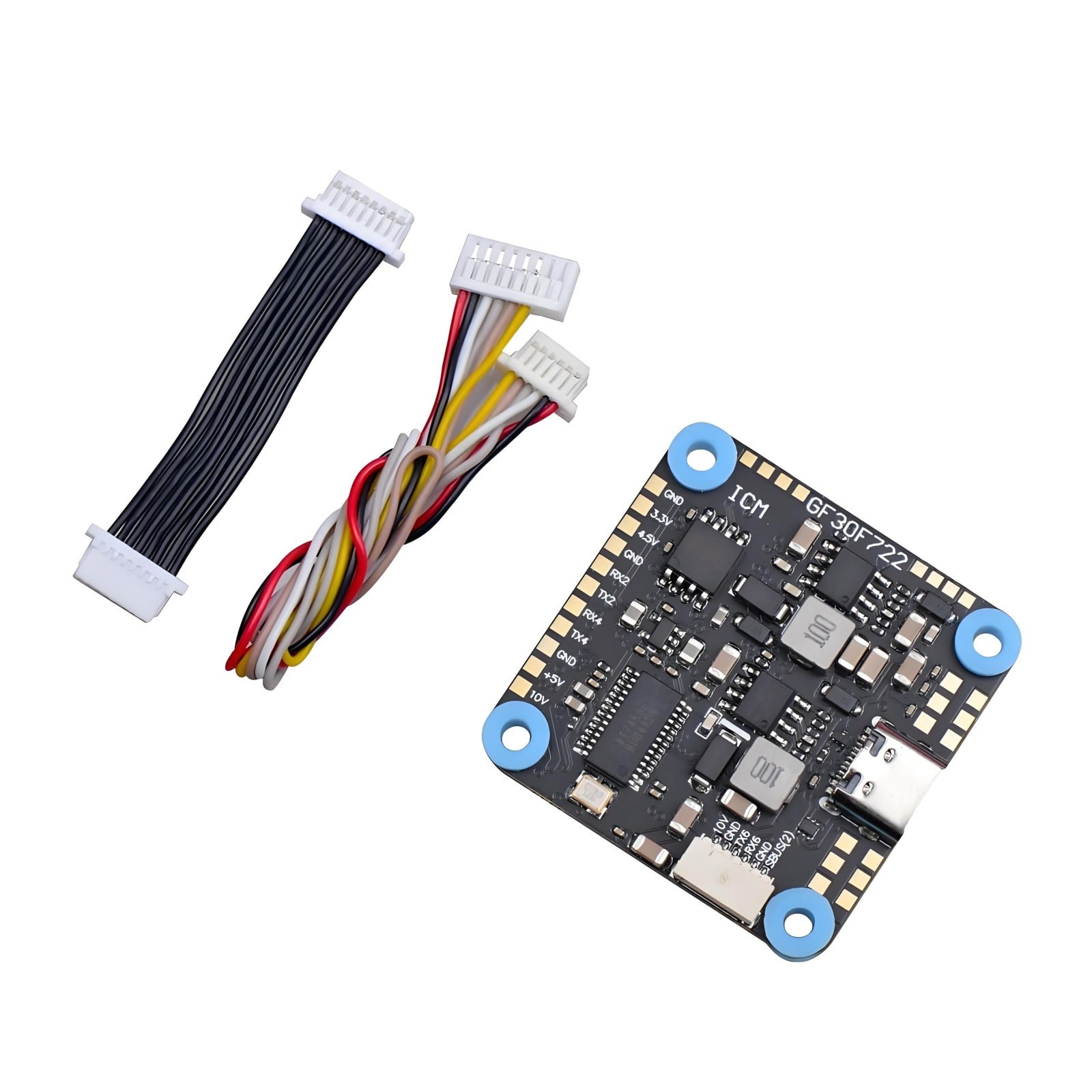

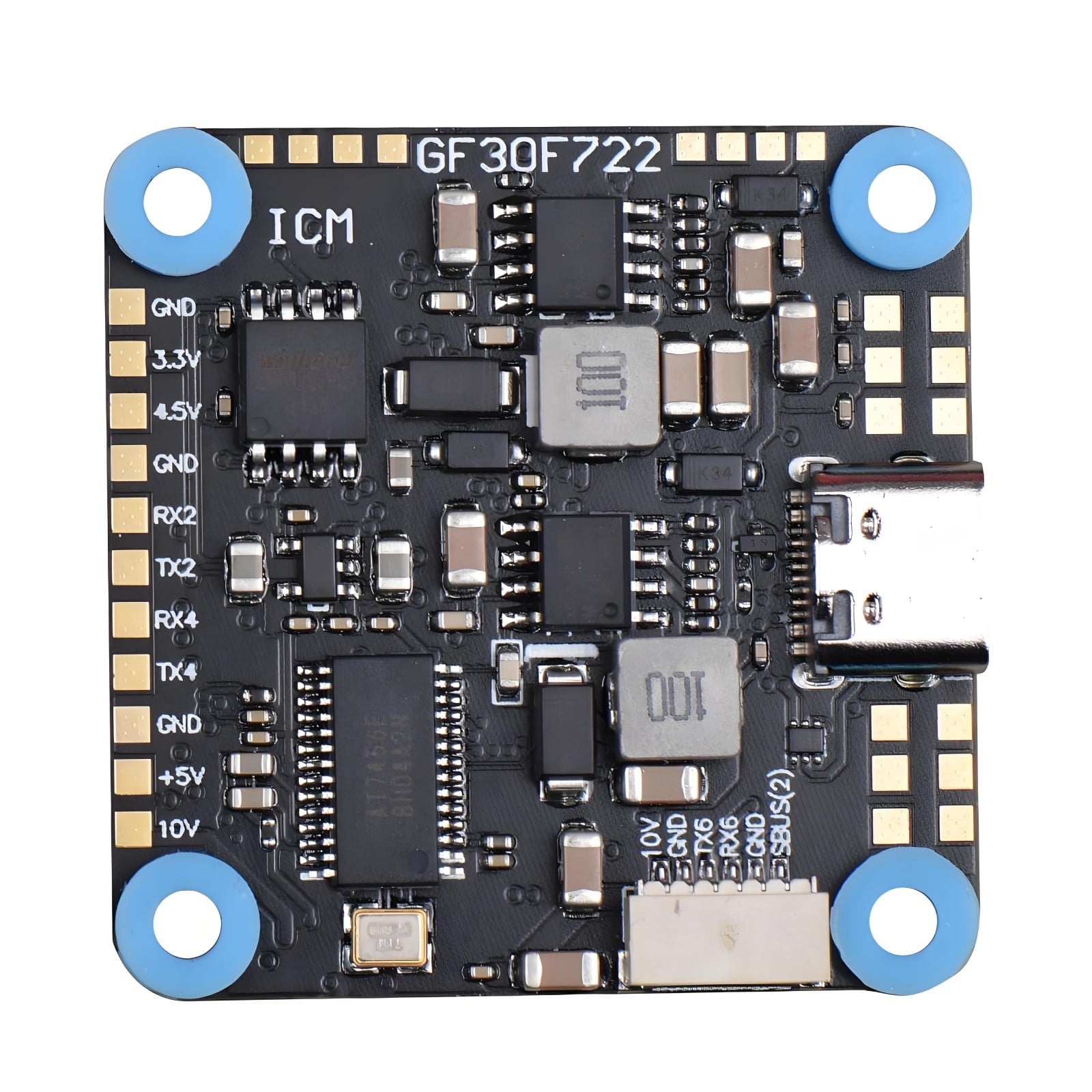

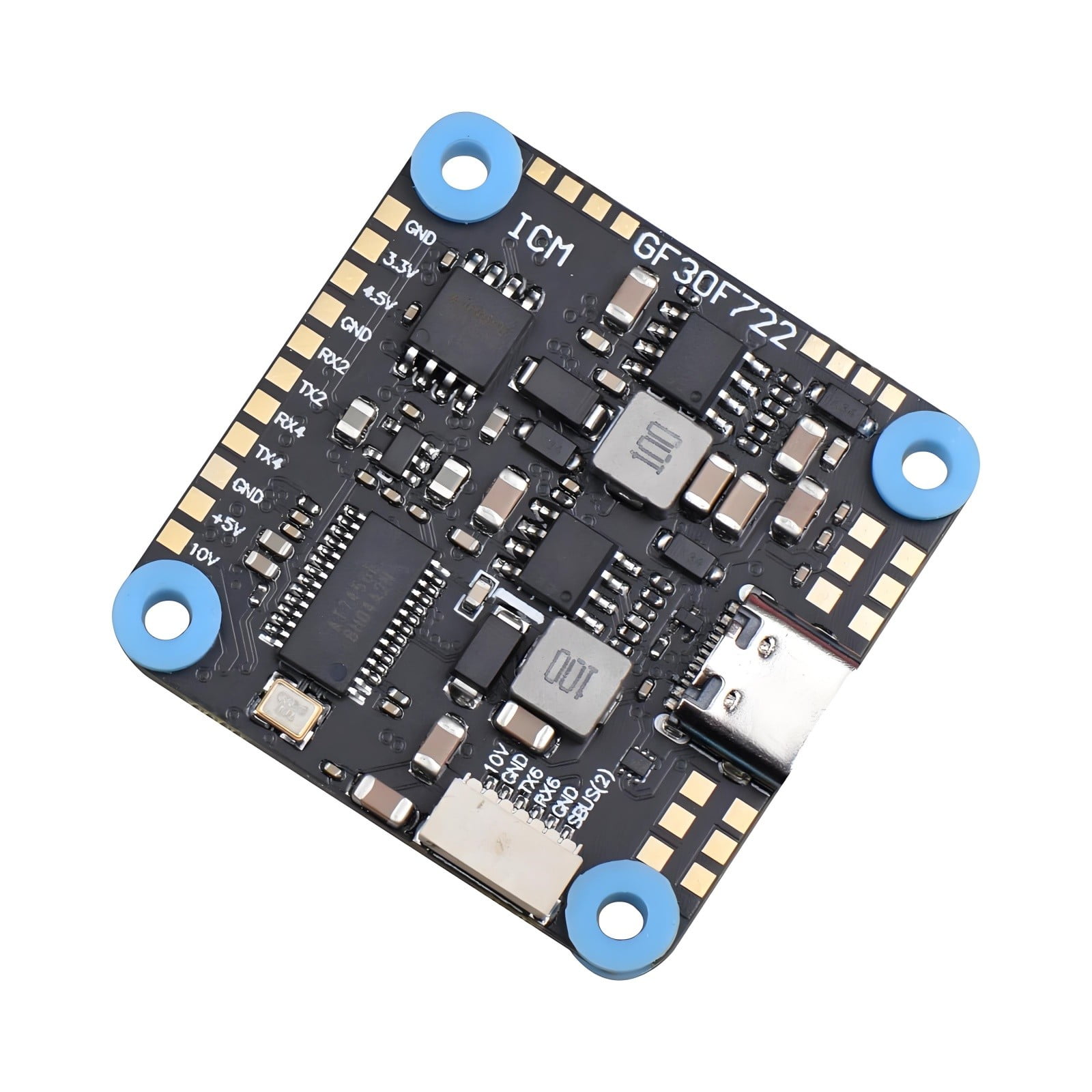

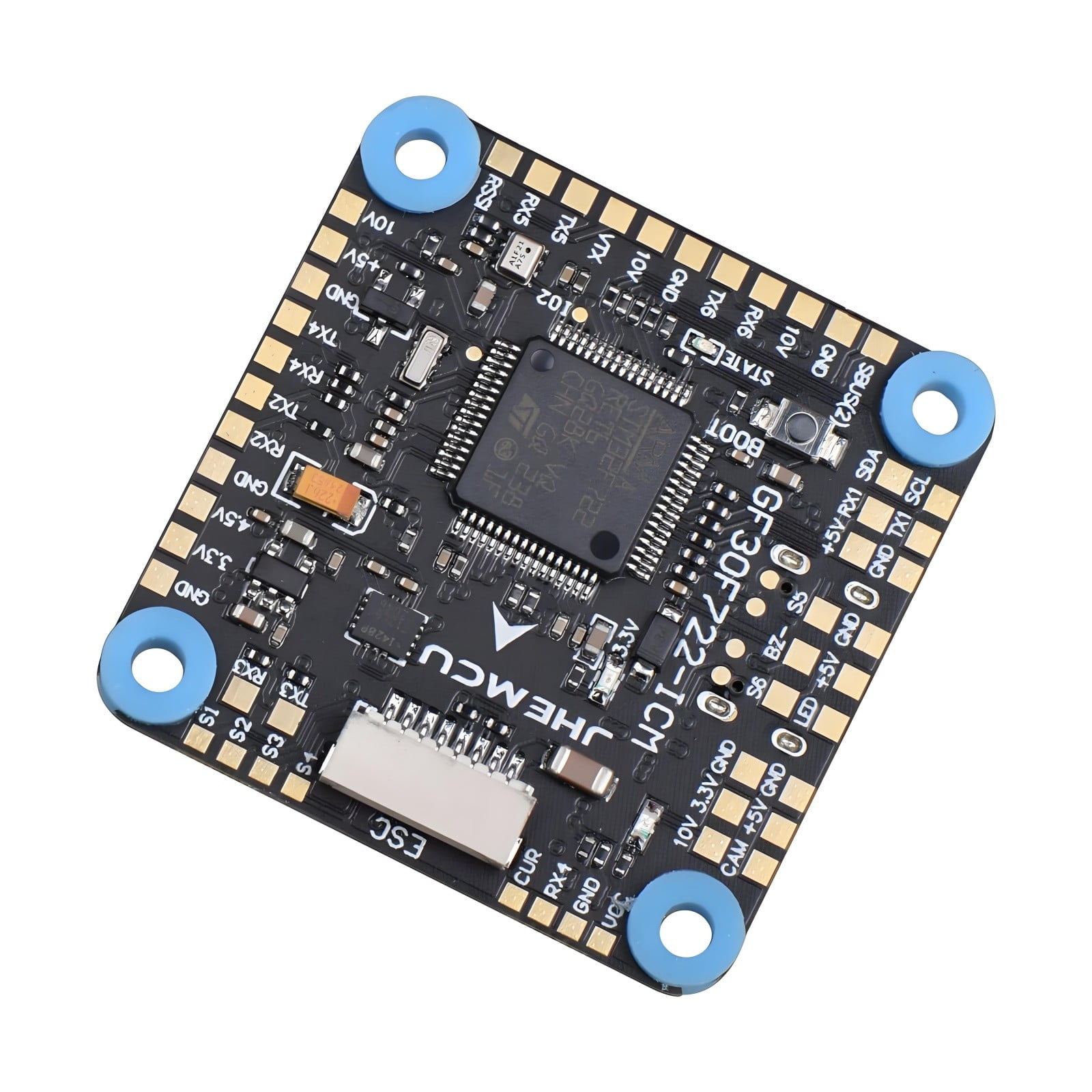

JHEMCU GF30F722-ICM F7 Flight Controller – STM32F722RET6, ICM-42688-P Gyro, 3–8S LiPo, Dual BEC 5V/10V, Betaflight OSD Blackbox for FPV Racing & Freestyle Drones

The JHEMCU GF30F722-ICM F7 Flight Controller is a feature-packed and powerful flight controller designed for FPV racing drones, freestyle quads, and aerial builds. Equipped with the advanced STM32F722RET6 MCU and ICM-42688-P gyro/accelerometer, this FC delivers ultra-smooth stabilization, responsive flight performance, and precise data processing for demanding pilots.<br><br>Supporting a wide input voltage range of 3–8S LiPo (11.4–36V), the GF30F722-ICM provides robust power handling for a variety of drone sizes and applications. The dual onboard BEC outputs—5V/2.5A and 10V/2A—allow easy powering of FPV cameras, video transmitters, and additional accessories, eliminating the need for external regulators.<br><br>Integrated hardware features include the AT7456E OSD chip for real-time flight data display, a built-in barometer for altitude telemetry, and a 16MB Blackbox for flight log recording and performance tuning. This ensures pilots can fine-tune PID settings, troubleshoot, and optimize flight performance with ease.<br><br>The controller offers multiple UART ports (UART1–6) and I2C support, making it compatible with a wide range of peripherals such as GPS modules, receivers, and telemetry devices. It also includes support for LED strips, buzzers, and current/voltage sensors, providing complete integration for FPV builds.<br><br>With Betaflight 4.3.1 firmware preloaded (JHEF7DUAL.HEX), this FC is ready for customization and advanced tuning. It supports ELRS, CRSF, SBUS, IBUS, and DSM2/DSMX receiver protocols, making it a versatile option across different radio systems. The USB Type-C port ensures fast and convenient firmware updates.<br><br>Specifications:<br><br>MCU: STM32F722RET6<br><br>IMU: ICM-42688-P Gyro/Accelerometer<br><br>OSD: AT7456E<br><br>Blackbox: 16MB onboard<br><br>Voltage Input: 3–8S LiPo (11.4–36V)<br><br>BEC Output: 5V/2.5A ±0.1V, 10V/2A<br><br>Receiver Protocols: ELRS, CRSF, SBUS, IBUS, DSM2/DSMX<br><br>Firmware: Betaflight 4.3.1 (JHEF7DUAL.HEX)<br><br>Size: 36×36 mm (mounting 30.5×30.5 mm, M4 holes)<br><br>Weight: 8.8 g<br><br>USB Port: Type-C<br><br>Sensors: Current/voltage sensor, barometer<br><br>Extra Support: LED strip, buzzer, ESC signals<br><br>Package Includes:<br><br>1 × JHEMCU GF30F722-ICM F7 Flight Controller<br><br>Whether you’re building a high-speed FPV racer, freestyle quad, or a versatile FPV platform, the JHEMCU GF30F722-ICM F7 Flight Controller provides the power, precision, and flexibility to push your flying experience to the next level.

• High-Performance F7 MCU – Powered by STM32F722RET6 processor with ICM-42688-P gyro, delivering ultra-fast and stable flight performance.






• Flexible Power Options – Dual BEC outputs (5V/2.5A & 10V/2A) for powering cameras, VTXs, and other FPV peripherals.
• Built-in OSD & Barometer – AT7456E OSD chip plus integrated barometer for full flight data and telemetry feedback.

• Blackbox & Connectivity – 16MB onboard Blackbox for log recording, with 6 UART ports and I2C support for multiple devices.

• Wide Receiver Compatibility – Works with ELRS, CRSF, SBUS, IBUS, DSM2/DSMX receivers, making it versatile for different setups.
